MAXOAK Portable Power Station, for Outdoor and Indoor
Silent&Gas-free Power Station,No Fan Design
Applicable to many scenarios
MAXOAK AC20 portable power station is designed for emergency power needs for example you are outdoor and far away from a wall outlet or power breakdown such as you are unfortunately trapped in natural disasters, hurricanes, earthquakes, flood, etc. it is also an ideal power companion for traveler and adventure who loves outdoor activities and need plenty of power to complete their photography and Creation. Charge your devices whenever when you need more power, keep you smartphone, tablet, camera, drone, laptop charged simultaneous, save you much time and provide a better outdoor experience.
| Model: | AC20 |
|---|---|
| Capacity: | 200Wh |
| Inverter Load: | Continuous 1000W (1000W≤load <1200W last for 120S;1200W≤load,shuf off after 0.5s) |
| Battery: | Li-ion battery cell,200Wh,11.1V |
| Input: | AC/PV Input: 7.9*0.9mm DC, 42V/200W, OCV 16V~68V /MAX.10A |

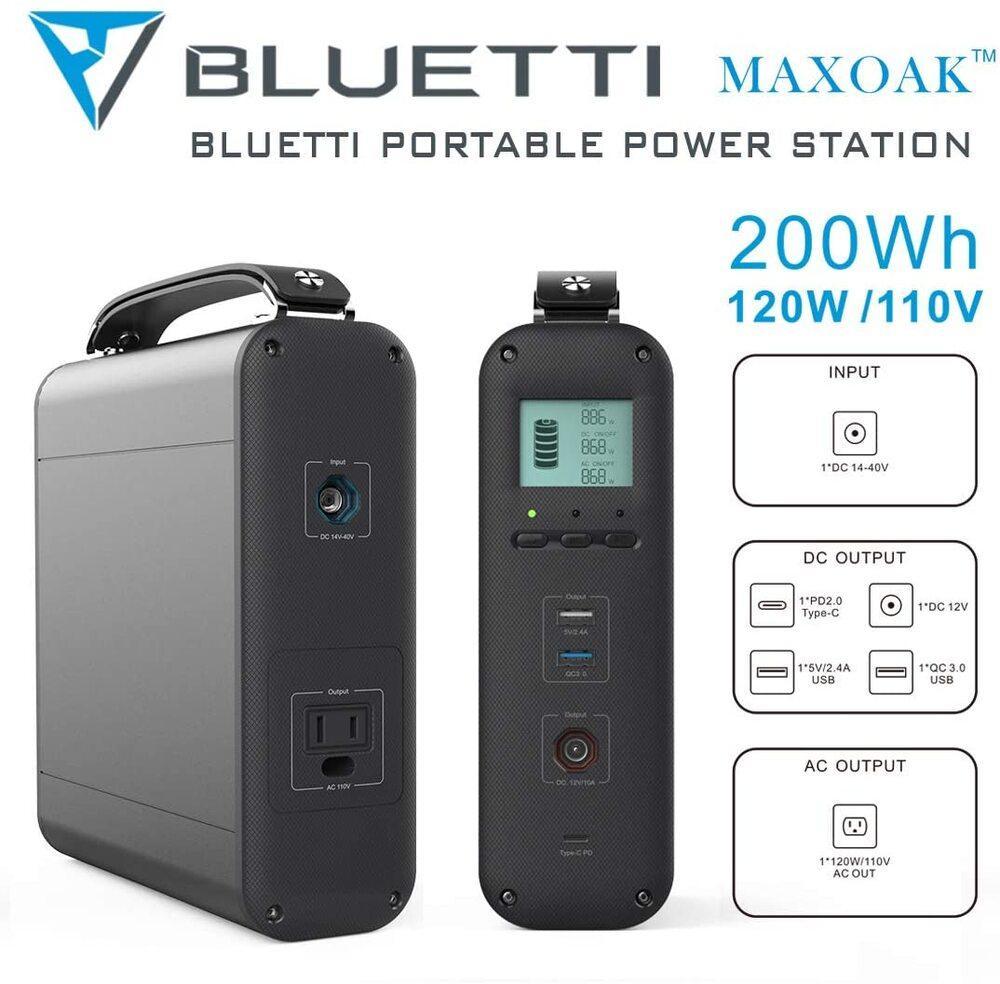

| Output: | 2*AC110V, 1*12V9A, 1*PD 45W USB-C, 4*5V3A USB. | Net Weight: | 3kg. |

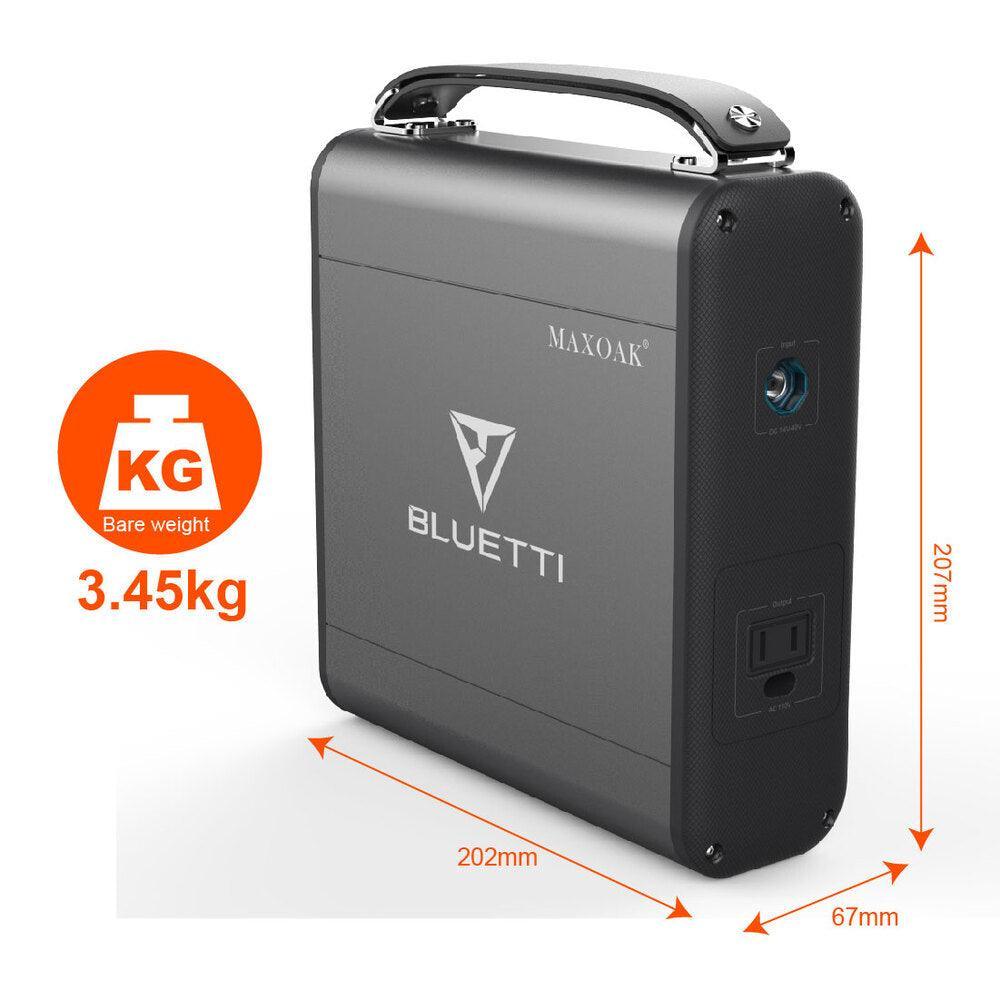

| Dimensions: | 202*67*207mm. |
FAQS
-
How to check charging status?
The battery icon indicates the battery level of this product. The battery level is displayed EN-06 in 5 segments. Each segment indicates 20% of the battery capacity. When battery is being charged, the icon would flash. When the battery is fully charged, the icon would stop flashing and all 5 segments will be filled.
-

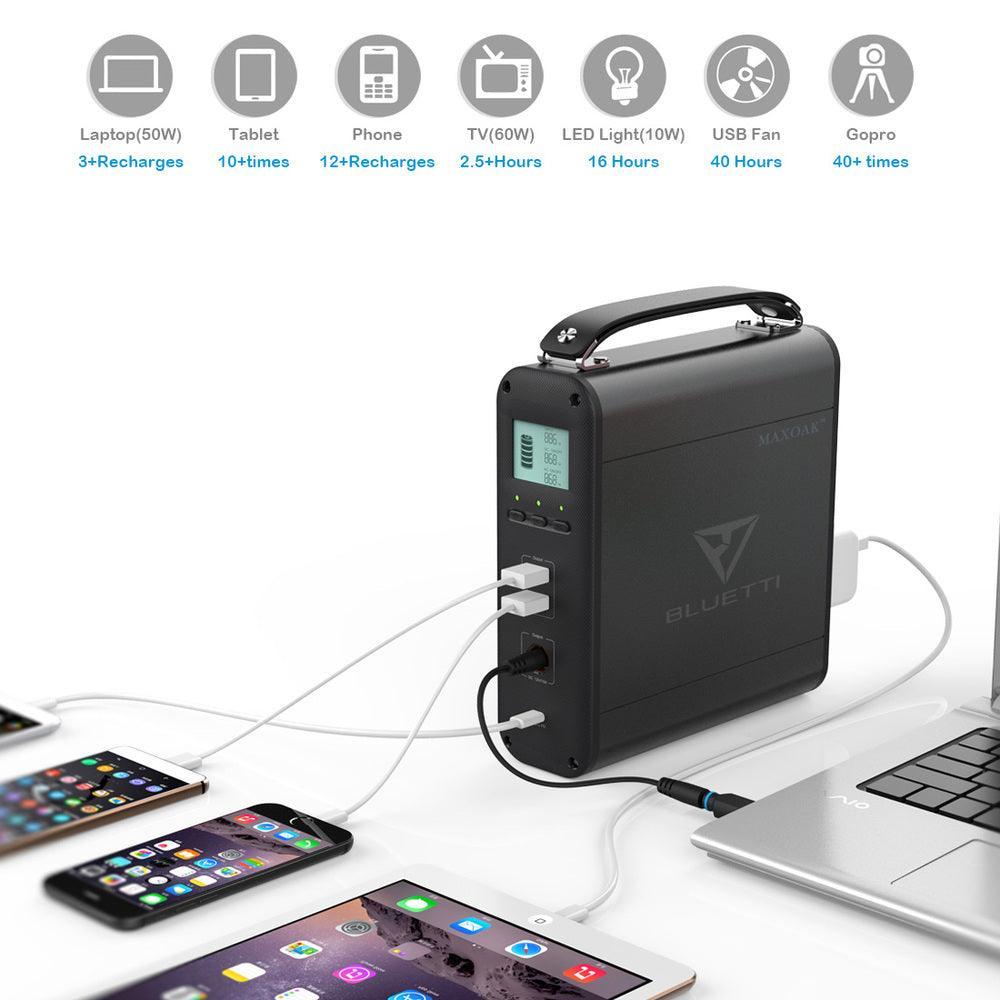

How to charge other electronic devices?
1. You need to know the working efficiency of your electronic devices. You can check the user manual of your electronic device or search online for such information.
2. You need to check the power at each output port. For example, the power at AC output port is provided by the built-in inverter of the product, whose maximum rated output power is 120W(Max). This means that if the power of connected electronic device is over 120W for a long period, the inverter will shut down output.
-
What is Depth of Discharge (DOD)?
To prolong battery life, we set the DOD of this portable power generator to 90%, which means only 90% of the battery capacity (200Wh) can be discharged. 10% of the energy is reserved so that the battery will not be damaged due to over-discharge.
-
Did it Support Charge and Discharge Simultaneously?
Yes, this power station can be discharged while charging. But for better protect the life- span of the battery, we do not suggest you use this pass-through function long term.
-
Can I Charge the Power Station with Two Solar Panel inSeries?
Yes, you can. But make sure the total open circuit voltage (OCV) is no more than 40V. otherwise it may power off automatically or cause damage.
-
How to Extend the Charge Time for CPAP?
We suggest turn off the humidifier/heater and set a lower pressure to get a longer charge time for CPAP.
-
What the weight and size?
Dimension: 7.9in*2.6in*8.1in ; weight:7.6lb
