Never Run out of Power
Versatile Power Source
Give Your Devices More Runtime
Home Backup and Trip Power Bank
Specifications
BATTERY INFO
PORTS
GENERAL
FAQS
-
Q1: Can the B230 battery modules be used alone?
Yes. B230 has a 100W USB-C, a USB-A and a 12V DC output ports, the battery module can work flawlessly when standalone.
-
Q2: How many B230 battery modules can connect with AC200Max?
Up to 2xB230 battery modules can connect with AC200Max.
-
Q3: How many B230 battery modules can connect with AC300?
AC300 can only connect with B300 battery module.
-
Q4: How many B230 battery modules can connect with AC200/P?
Up to two B230. One via the solar input port by a converter cable, and another via the AC adapter inlet.
-
Q5: What are the charging methods for the BLUETTI B230?
B230 can be recharged by:
1）500W AC adapter (Sold separately)
2) Car cigarette lighter output or solar panels (Require the BLUETTI D050S - DC charging enhancer, sold separately).
Notice: There is only one inlet on the battery module, so it cannot be charged by more than one charge method simultaneously. -
Q6: Can I use car cigaretter lighter or lead-acid battery to charge B230?
A:
Yes, BLUETTI D050S DC Charging Enhancer* is required. * Sold separately
-
Q7: Can I use third-party solar panels to charge the BLUETTI B230?
A:
Yes, if the solar panels' specs fall in
1) Total Voltage: 12-60V.
2) Total Power: 200W Max.
3) Include MC4 connectors.
-
Q8: Can it charge and discharge at the same time?
A:
Yes.
-
Q9: Can I use or charge B230 in sub-zero temperatures?
A:
Temperature ranges for B300 are:
Charge: 0-40℃ (32-104℉);
Discharge: -20-40℃ (-4-104℉);
Storage: -20-40℃ (-4-104℉).
Technically, it can power electrical devices under such situations, but please avoid charging it.
-
Q10:How long can it run my device?
A:
Running time = Battery capacity × DoD × η ÷ Device rated power
DoD refers to Depth of Discharge and η is local inverter efficiency.
For B230, both DoD and η are 90%. If you run a 100W light bulb with it, the running time will be:
2,048Wh × 90% × 90% ÷ 100W ≈ 16.5hrs
Note: The above data is for reference ONLY.
-
Q11: Is B230 waterproof?
A:
No. Also, please do NOT store it in a humid environment for a long time.
-
Q12: Is it possible to replace the built-in battery?
A:
No. If the battery pack is faulty or even dead, please contact BLUETTI Customer Service.
-
Q13: Can you ship the B230 to Puerto Rico, Hawaii, and Alaska deliver?
Can not. The packages exceed the transportation weight limit of the logistics company.
-
Q14: Where can i buy the cable that can connect AC200P with B230?
You can buy here: https://bit.ly/3Z63e7o
How-to Videos
A useful guide to making the most of it all.

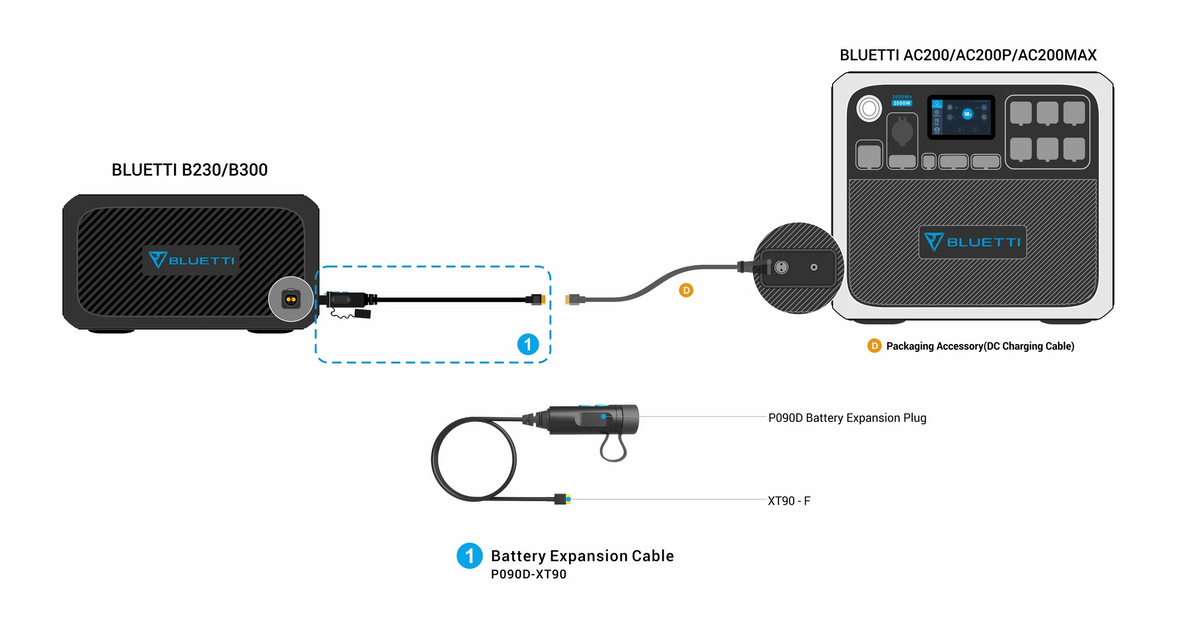

How to connect B230 or B300 with AC200/P&EB200/P?

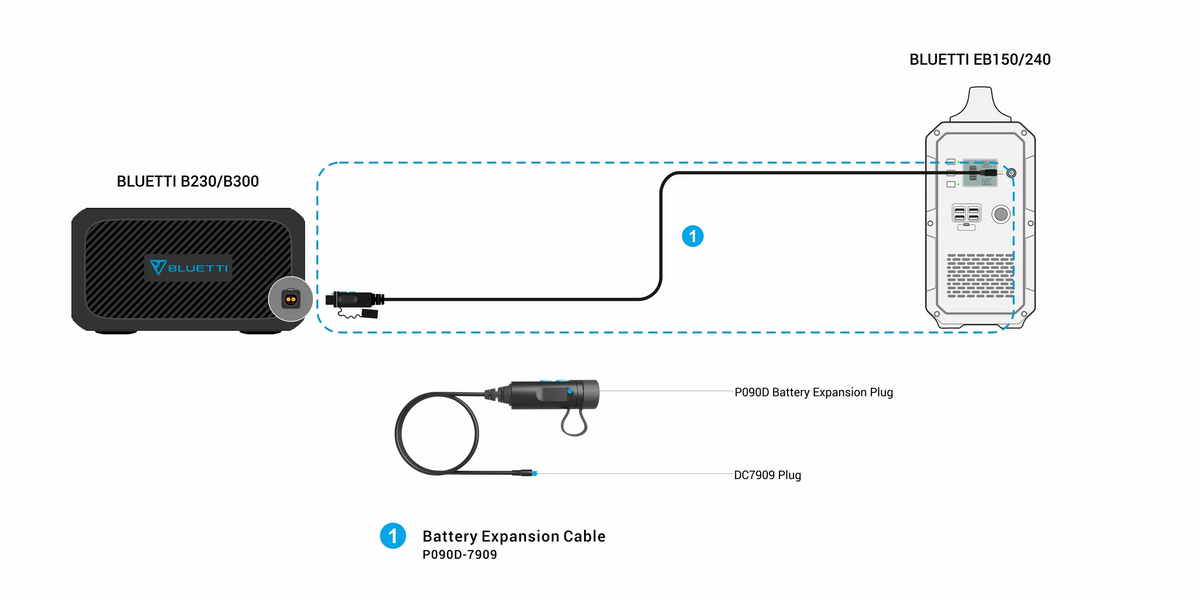

How to connect B230 or B300 with EB120/150/240?
